エコナランドリー / 2021

faceofcity01.jpg 02_exterior2.jpg 04_ex-detail2.jpg 16_piloti02.jpg 08_ex-night2.jpg 09_piloti.jpg 10_co-entrance.jpg 11_co-corridor.jpg 12_staircase.jpg

データ

所在地:東京都品川区大井
用 途:コインランドリー
種 別:内装設計
床面積:45.59㎡
設計担当:土居志朗

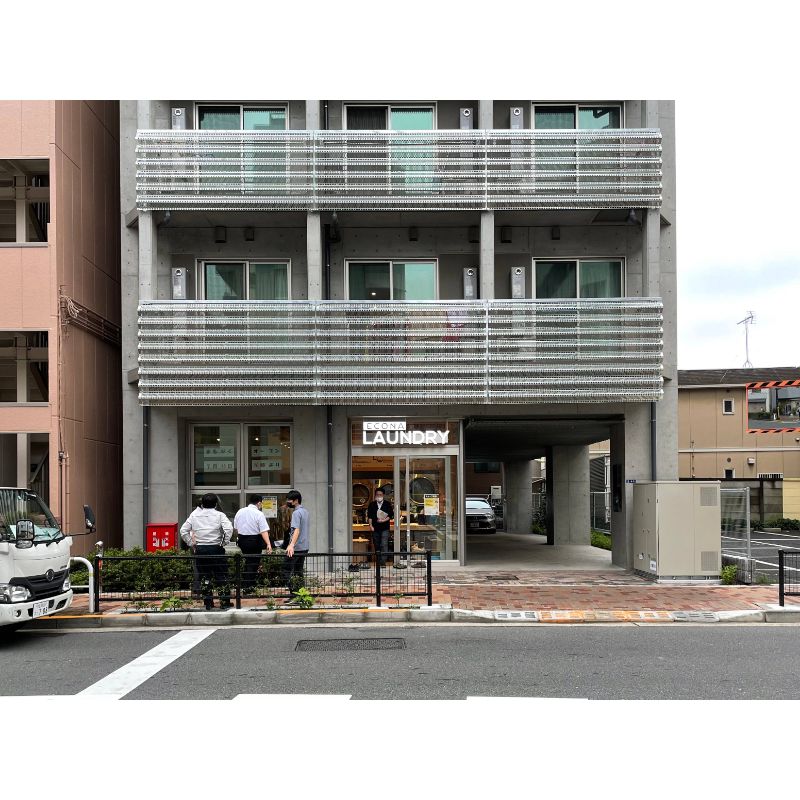

 設計監理した共同住宅の1階テナントに入るコインランドリーの内装設計。商店街と住宅街の境界に立地する為、建物本体の設計で、1階は商店街の賑わいを接続するように店舗スペースを配置していた。

 コインランドリーは大きく分けて無人店舗と有人店舗(クリーニング取次業としての店舗や最近流行りのカフェなどに併設した店舗)とがあり、多くは無人店舗である。無人店舗の多くは24時間営業で、地域の防犯にも少なからず寄与できる(逆にコインの盗難等の自己防犯も必要)ほか、井戸端会議とまでは行かなくてもちょっとした地域のコミュニティスペースとして機能する可能性もコインランドリーは持っている。

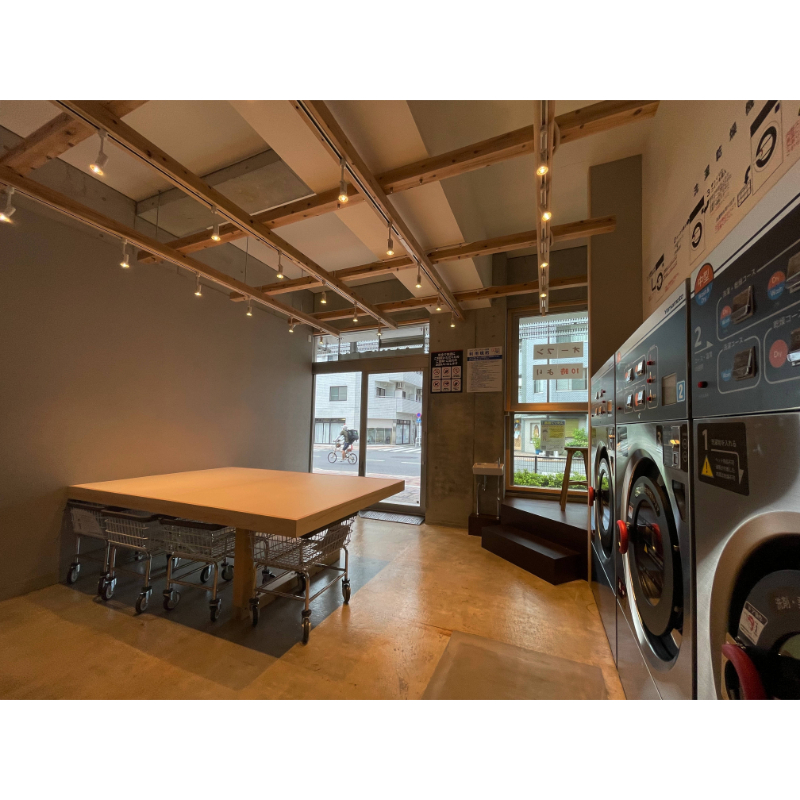

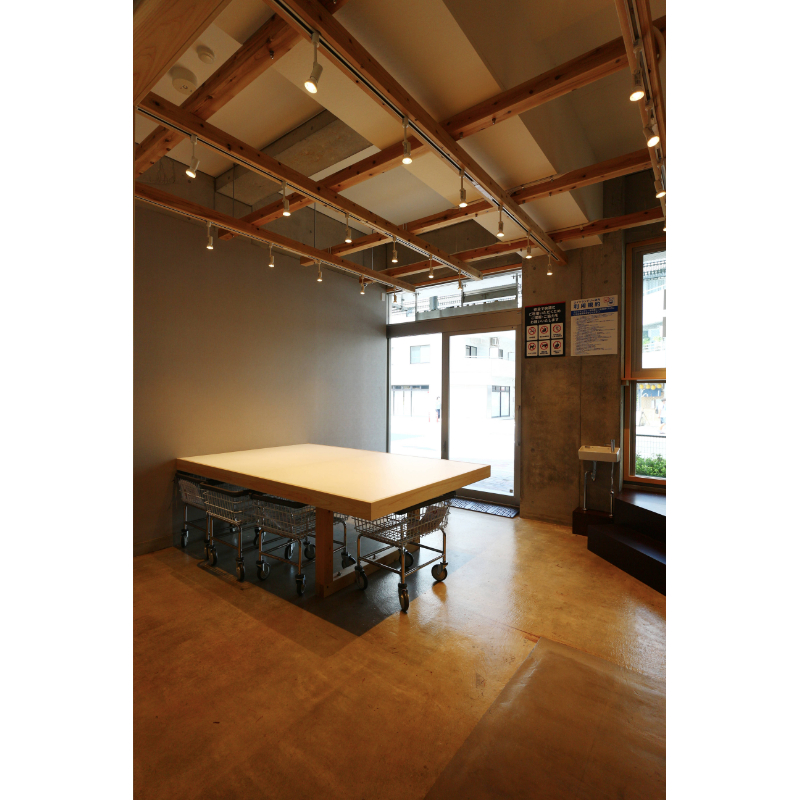

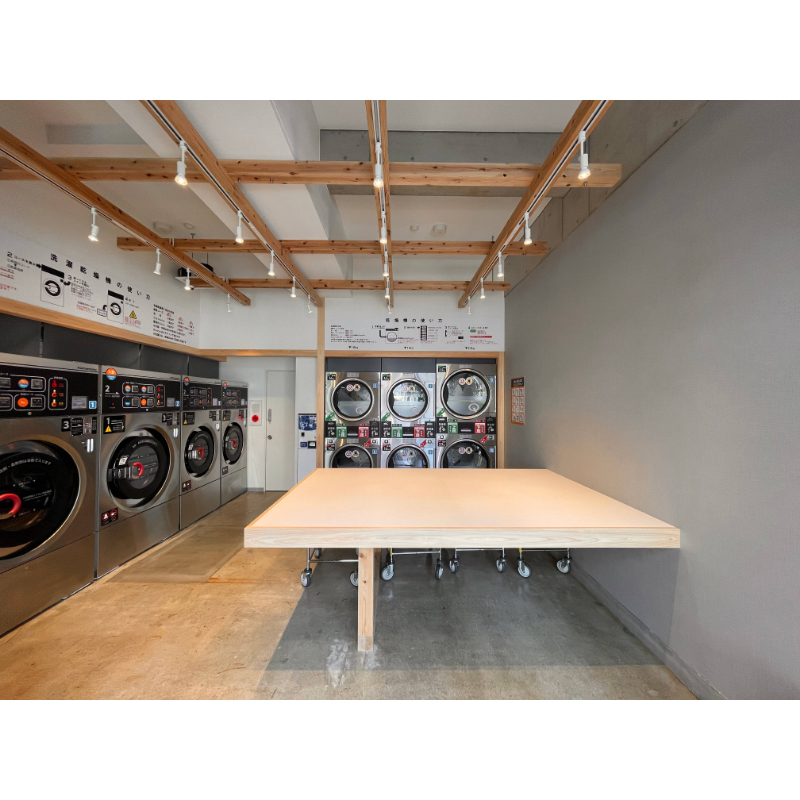

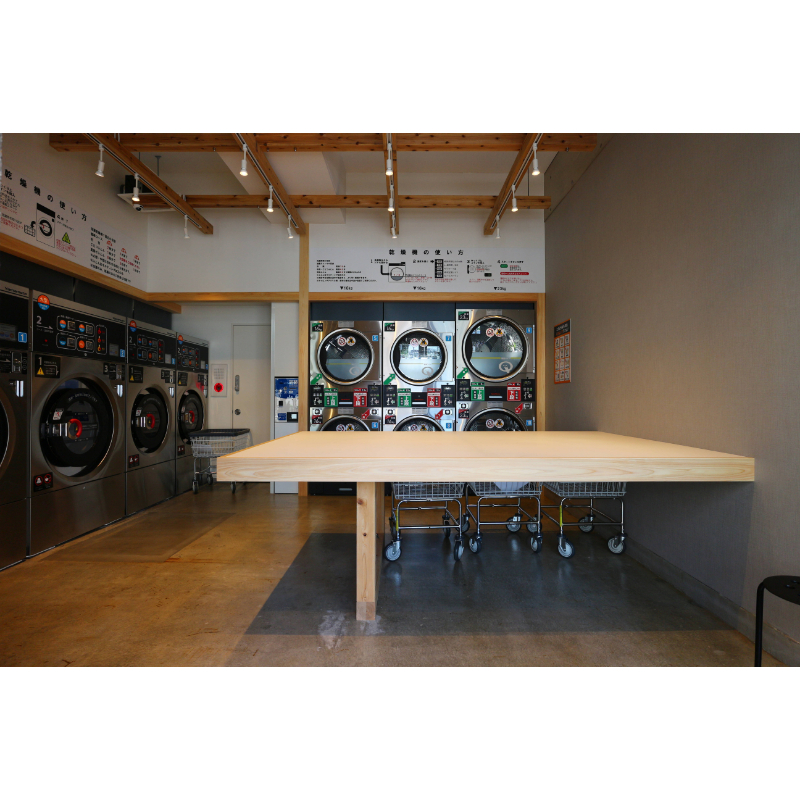

 この店舗は無人のコインランドリーなので、その特性を活かす空間となることを考えて、明るさ、温かみ、清潔感に配慮した。中央の2.4m×1.6mの大きめのたたみ台は使いやすいだけでなく、抗ウイルス機能のメラミン板を天板に使用している。

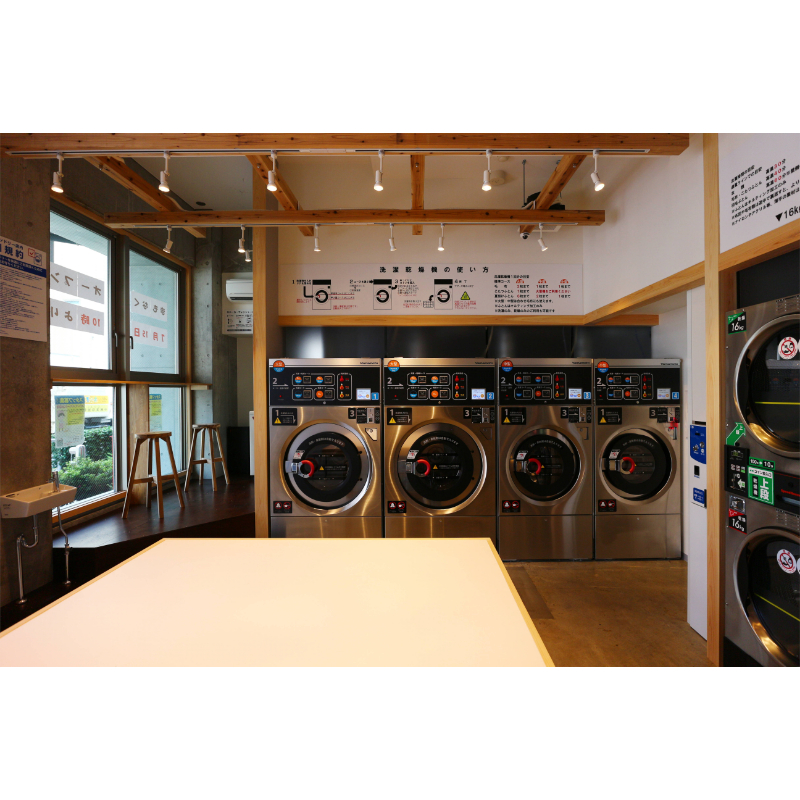

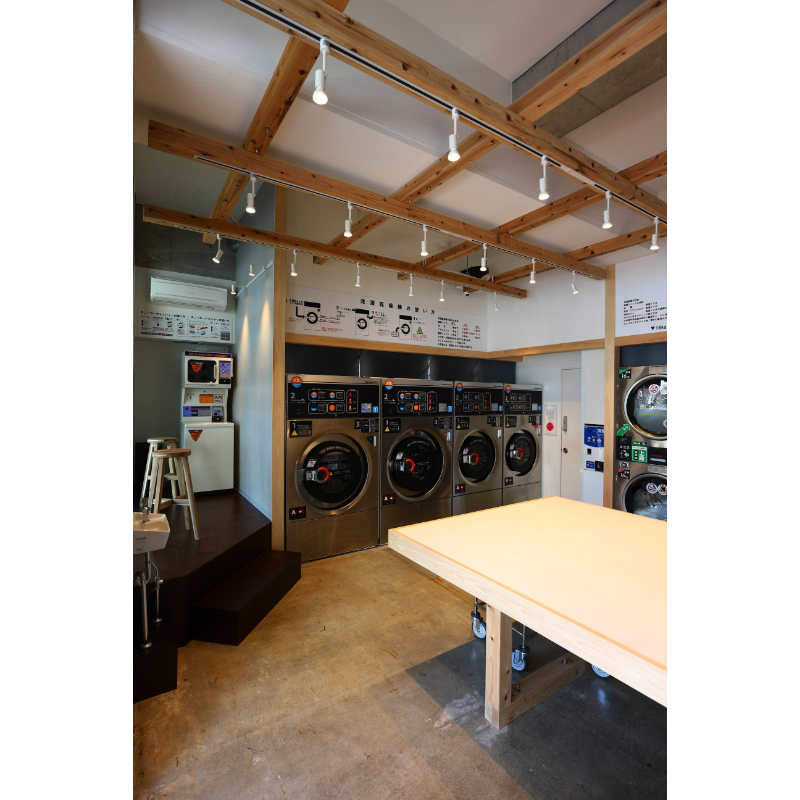

 また、「コイン」というだけあり決して収益性の高い業態ではないので、必然的にイニシャルコストは抑えめとなるが、空間のイメージを帯びるエレメントを最小限にスケルトン空間に重ねることでコストを抑えながら、目標とした「明るさ、温かみ、清潔感」のある地域のコミュニティスペースとしてのランドリー空間を実現した。床はコンクリートスラブにクリアの艶有防塵塗装、壁は白を基調としたクロスに無地のヒノキの付け枠で真壁風にし、天井はスケルトン(断熱材打込み)に杉(節有)90角の井桁照明ラックを作り込むというよりはレイヤー的にプロットするような感覚で表現している。

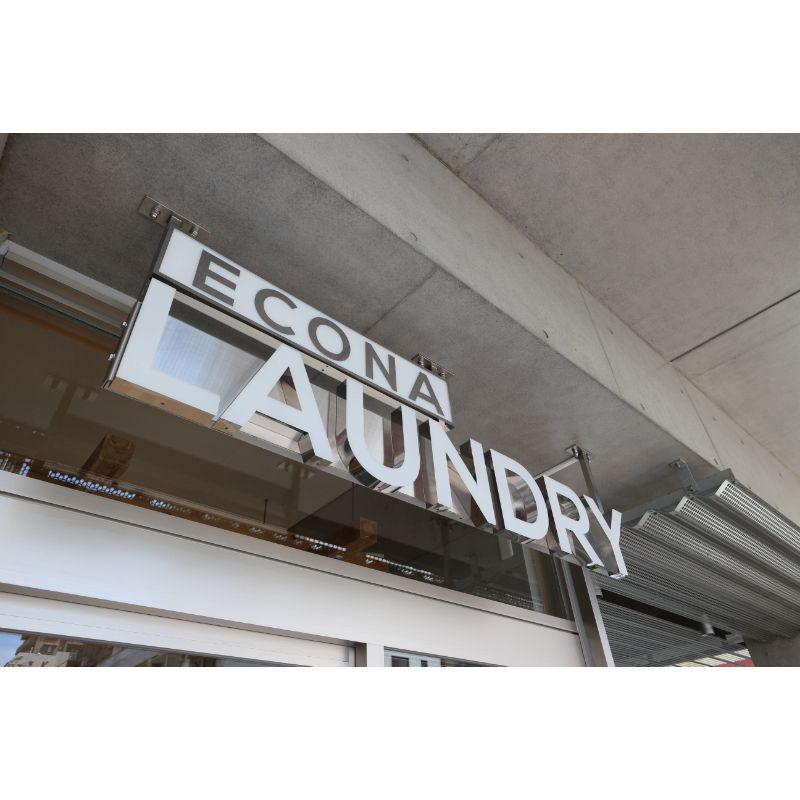

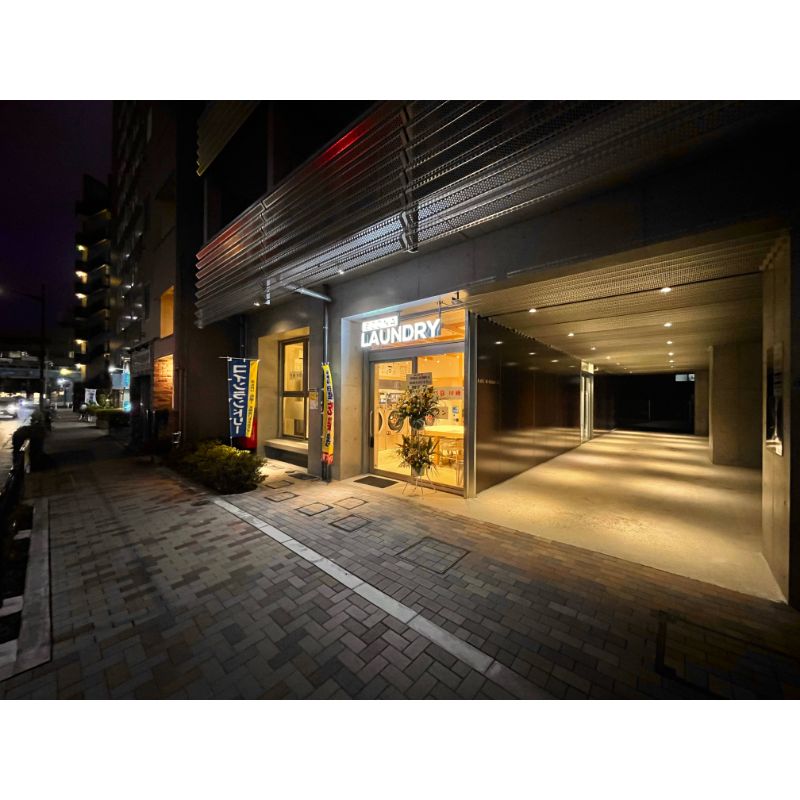

 入口にはステンレスと白色のLEDサインを設置して、ステンレス製の洗濯機器とクリーニングを想起する白色で控えめながらここに新たなランドリー空間が生まれたことをアピールし、建物本体と一体的な意匠に仕上げている。

data

Econa Laundry (2021)

Location:Oi, Shinagawa-ku, Tokyo
Main use:Laundromat
Floor area : 45.59 sq.m
Type: interior, shop
Completion : 2021

This is the interior design of a coin-operated laundromat that will be a tenant on the first floor of an apartment building we designed. Since the building is located on the border between a shopping street and a residential area, the first floor was designed to be a retail space that connects to the bustling shopping street.

Coin-operated laundries can be roughly divided into unmanned and manned stores, and most are unmanned. Most unmanned stores are open 24 hours a day, and can contribute to local crime prevention in no small way (although they also need to protect themselves from coin theft, etc.).

Since this store is an unmanned laundromat, we gave consideration to brightness, warmth, and cleanliness in order to take advantage of its characteristics. The large 2.4m x 1.6m table for folding laundry in the center is not only easy to use, but also has a melamine board top with anti-viral properties.

The initial cost was naturally low because it is not a profitable type of business, but by minimizing the number of elements that contribute to the image of the space, we were able to keep the cost down while creating a laundry space that is bright, warm and clean as a community space.

The floor is a concrete slab with a clear glossy dustproof coating, the walls are white cloth with plain cypress frames to express a Japanese half timber wall-like appearance, and the ceiling is a skeleton (insulated) with 90 square cedar (with knots) well lighting racks as layers.

At the entrance, stainless steel and white LED signs are installed to show that a new laundry space has been created here, although they are modest in color, reminiscent of stainless steel laundry equipment and cleaning, and are integrated into the design of the building itself.
