メゾンドゥニコラ大井 / 2021

faceofcity01.jpg 02_exterior2.jpg 04_ex-detail2.jpg 16_piloti02.jpg 08_ex-night2.jpg 09_piloti.jpg 10_co-entrance.jpg 11_co-corridor.jpg 12_staircase.jpg 13_room.jpg 14_rooftop.jpg 005_dsc03801.jpg(c)Stefano Cometta faceofcity02.jpg(c)Stefano Cometta 002_dsc03868.jpg(c)Stefano Cometta 003_dsc03636.jpg(c)Stefano Cometta 004_dsc03979.jpg(c)Stefano Cometta 006_dsc03822.jpg(c)Stefano Cometta 008_dsc04837edited.jpg(c)Stefano Cometta 007_dsc04233.jpg 010_dsc04690.jpg(c)Stefano Cometta

データ

所在地:東京都品川区大井
敷地面積:373.59
用 途:共同住宅(賃貸40戸)・店舗
    ワンルーム(22.90㎡~26.63㎡):36戸、1LDK40.24㎡~58.13㎡):4
階 数:地上9階・地下0
高 さ:最高の高さ29.523
構 造:鉄筋コンクリート造、耐火構造
建築面積:231.86
延床面積:1,457.31㎡(容積対象1,205.69㎡)
設計担当:土居志朗(統括)
※イデア建築研究所と協働

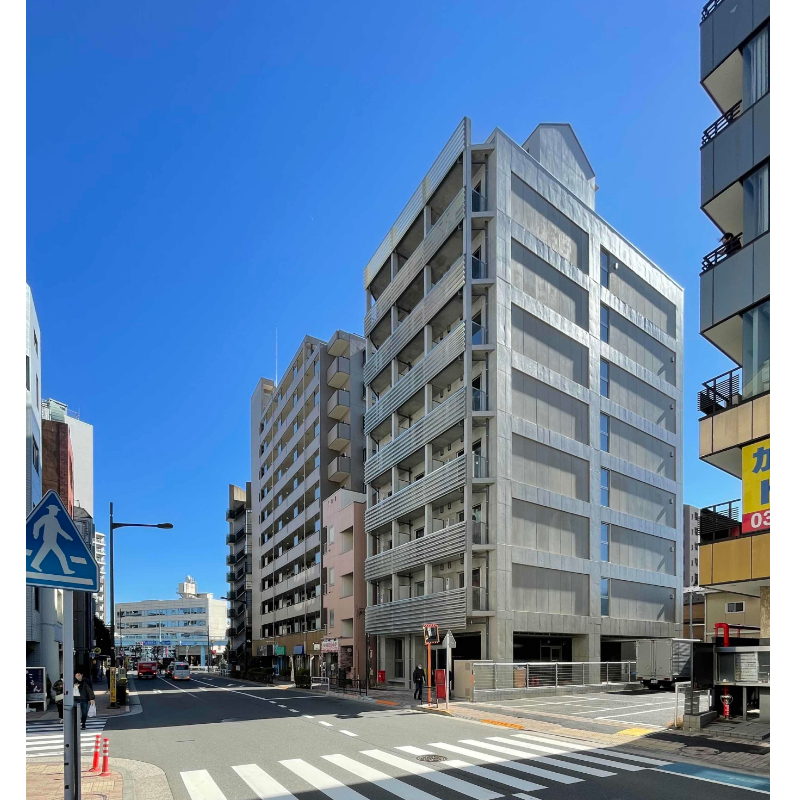

北向きの賃貸マンションの設計事例である。日本では住宅は南向きが良いとされているが、どんな敷地でもそのように建てられる訳ではない。安定した自然光や日射熱軽減(夏の涼しさ)、順光の眺望(南向きは逆光となる)など北向きにもメリットはある。敷地条件を活かしてデメリットとされる暗さ、湿気、冬の寒さをいかに克服し、土地有効活用の賃貸マンションとして売り物に出来るか、魅力ある景観とできるかを考えた。

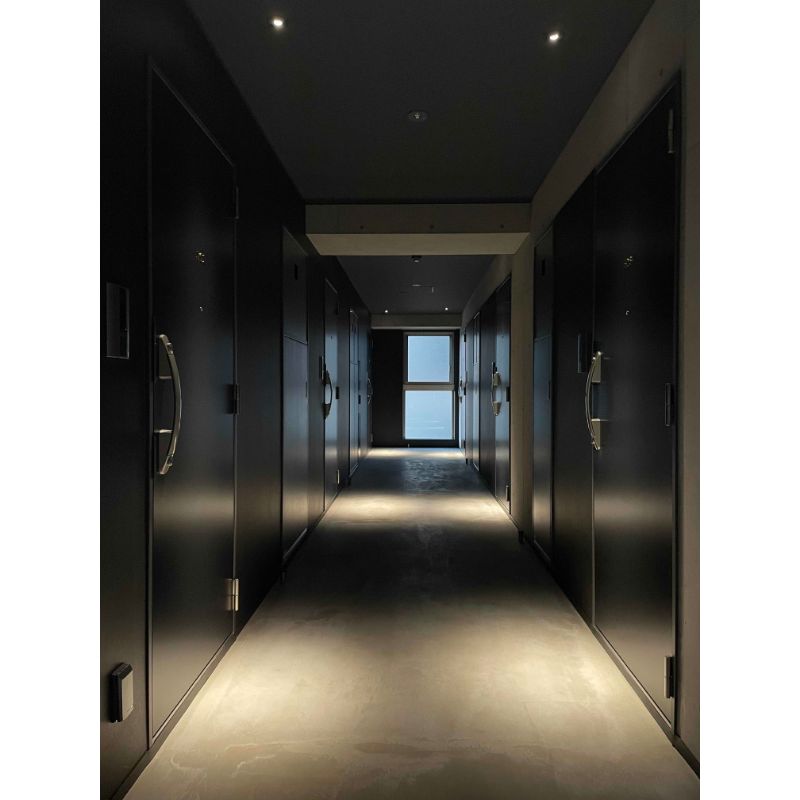

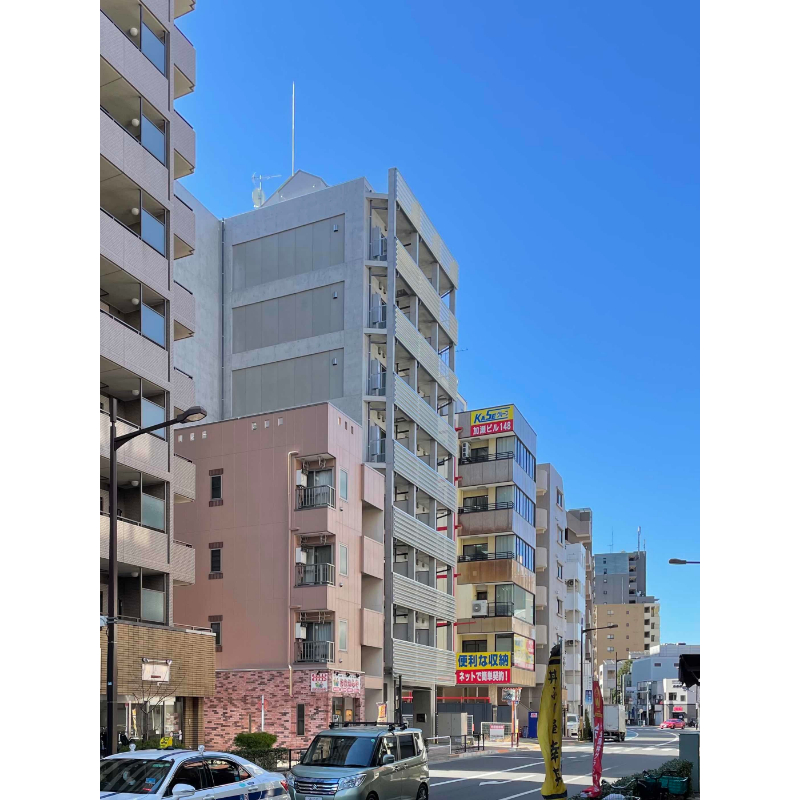

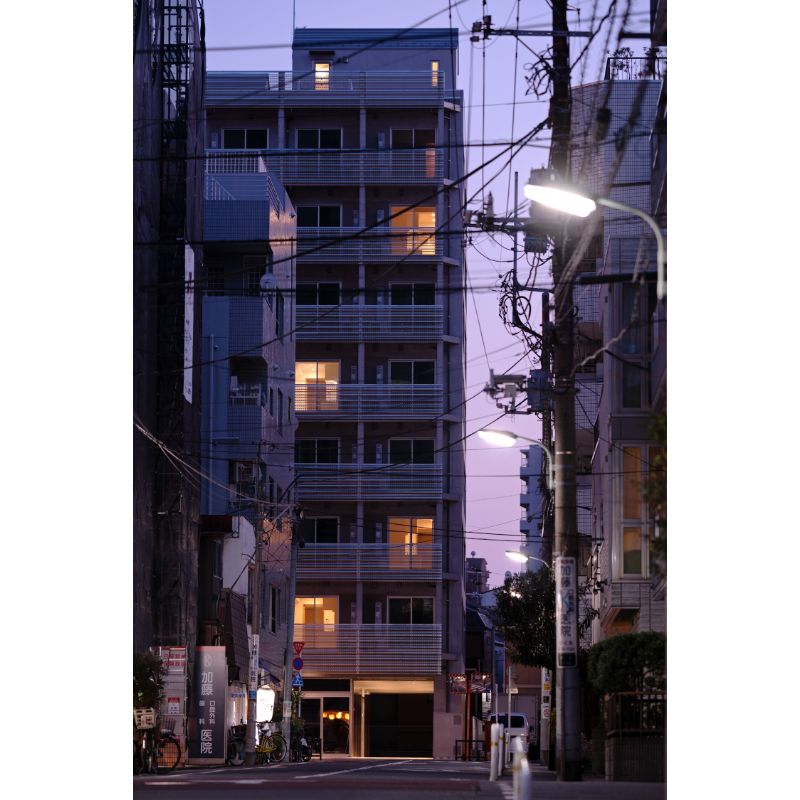

敷地は北側接道の南北に縦長な形なので、東西の隣地側には窓を向けられず、南面住戸の片廊下型では敷地形状との関係で有効率が上がらない。北側の前面道路は幅員15mと広く、T字路の交差点に面している為、北向きでも眺めの良い開放感ある住戸になるのではないかと考え、北側と南側に住戸を並べる中廊下形式のプランとした。北向き住戸が全体の半数に及び、北面のバルコニーの明るさや通気性を工夫して設計した。

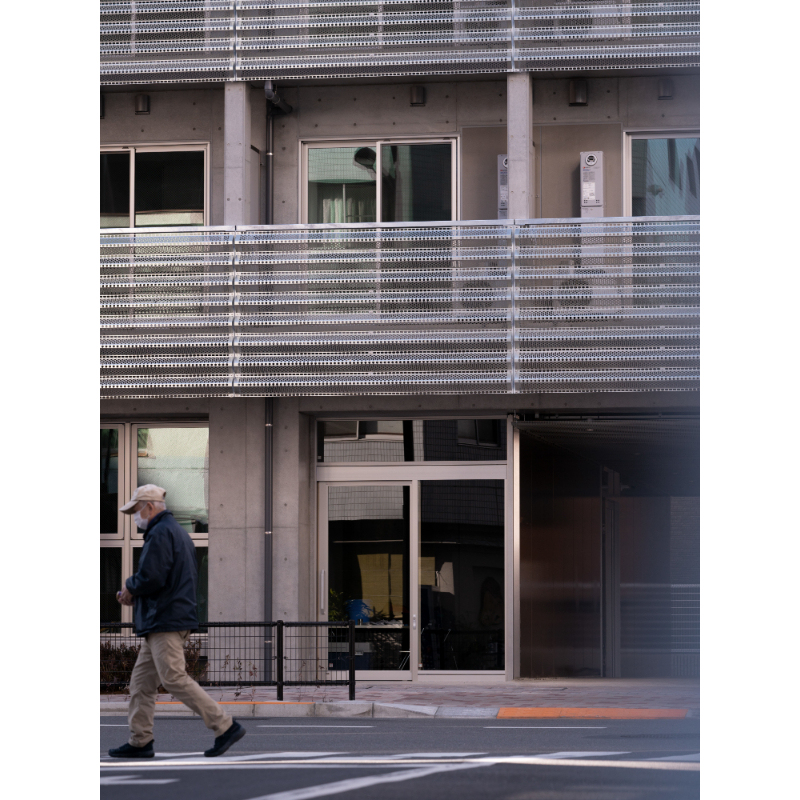

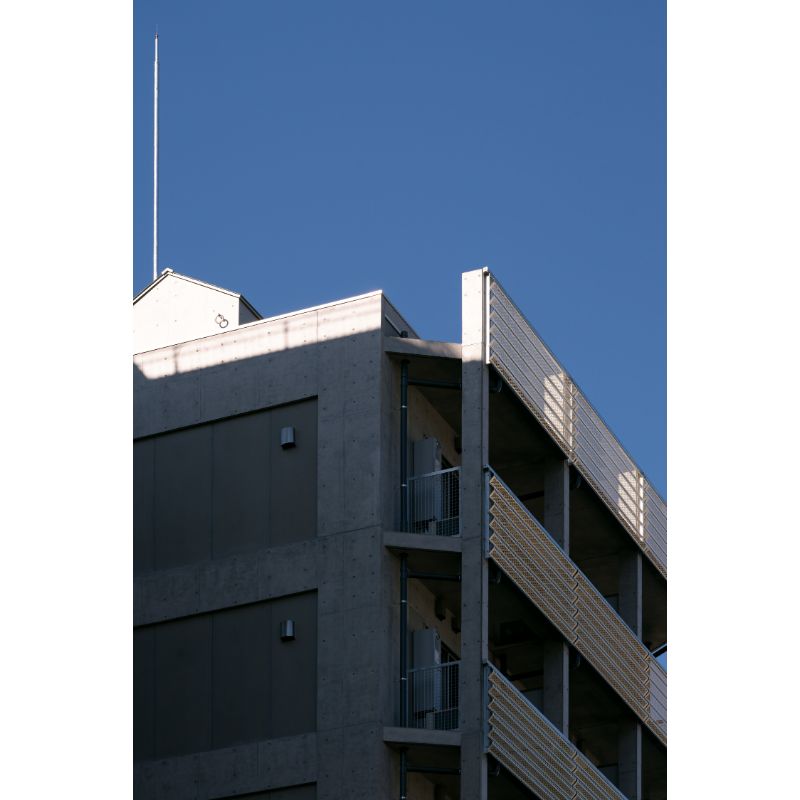

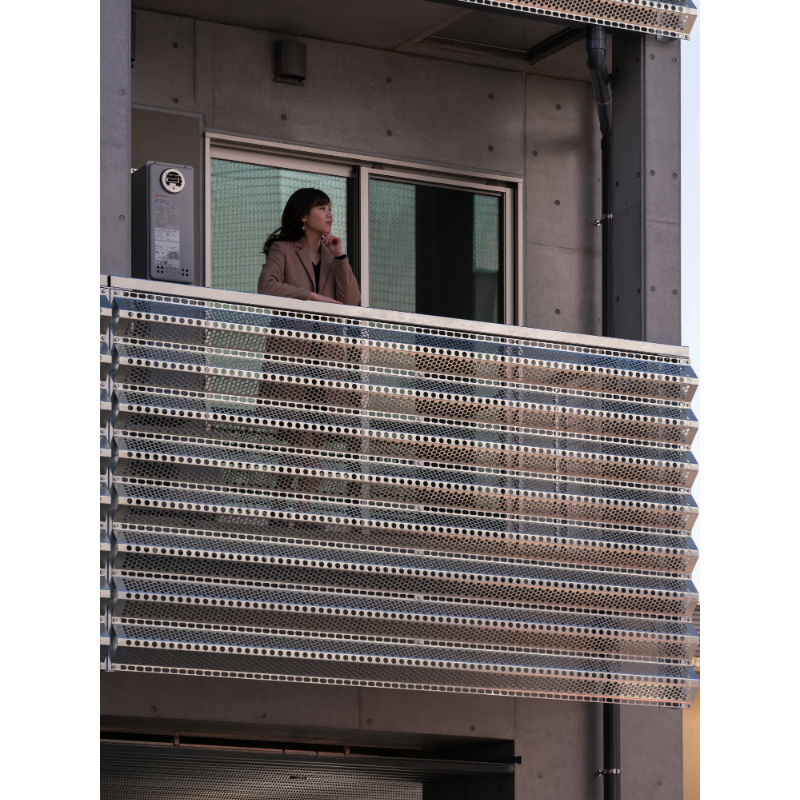

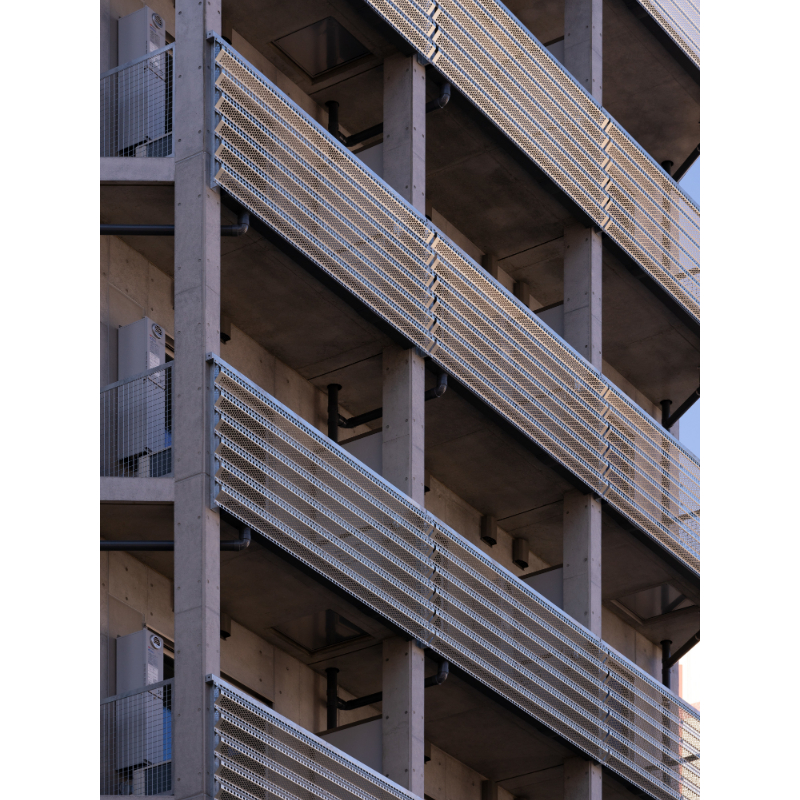

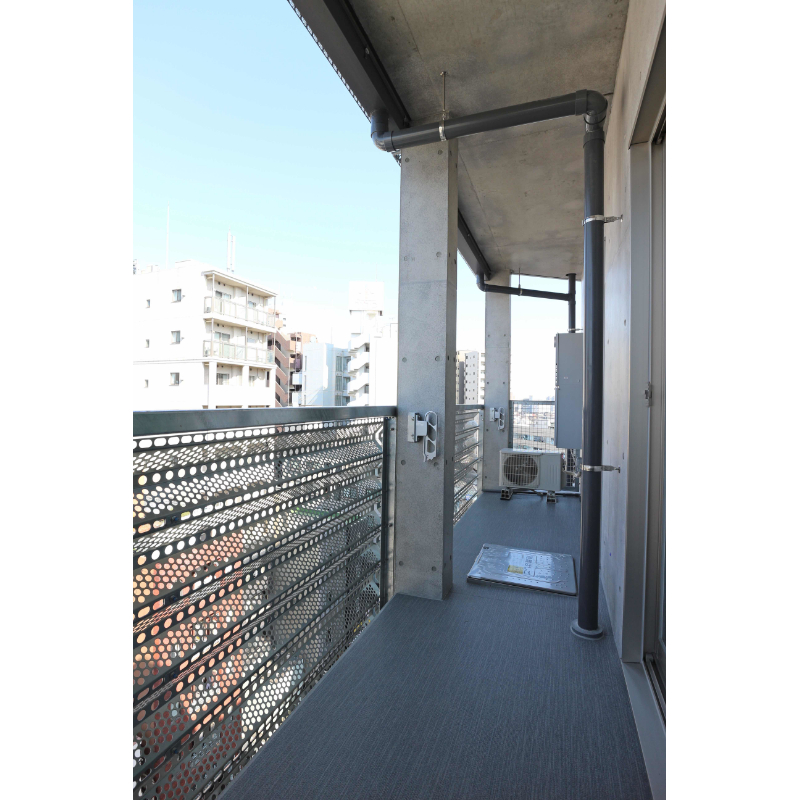

バルコニーの片持ちスラブの先端は鉄筋コンクリートの腰壁や側溝の立ち上がりを設けず、代わりに軒樋を片持ちスラブ先端下部に取り付けた。手摺壁は視線や風が抜けて明るく透明感ある有孔折板とし、下地鉄骨や床の立ち上がりがなく視界がクリアになるような納まりとした。

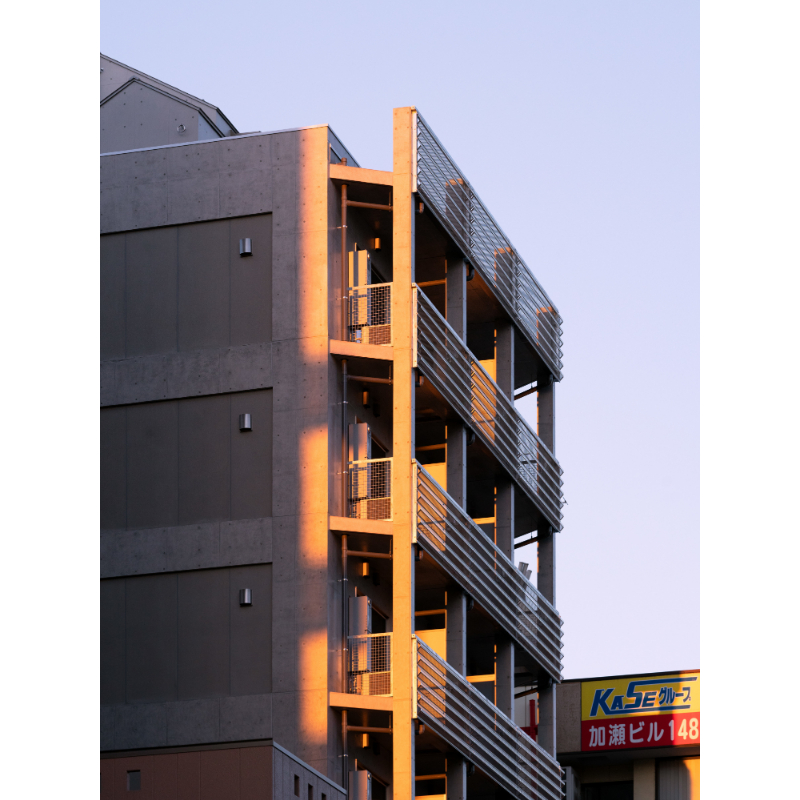

亜鉛めっき仕上げの有孔折板は、対面の日光を受けた建物からの反射光(色)が映り込み明るく見える。また、有孔折板の波形と孔による環境光の異なる角度の反射と透過や太陽の位置や視点によって表情が変化するバルコニーのパネルがファサードを特徴付けている。

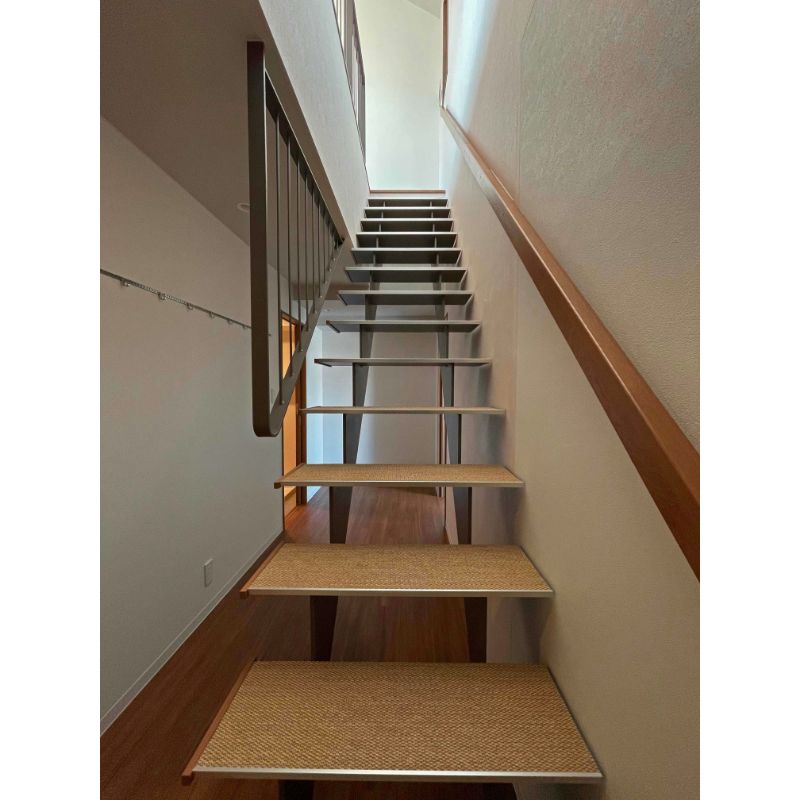

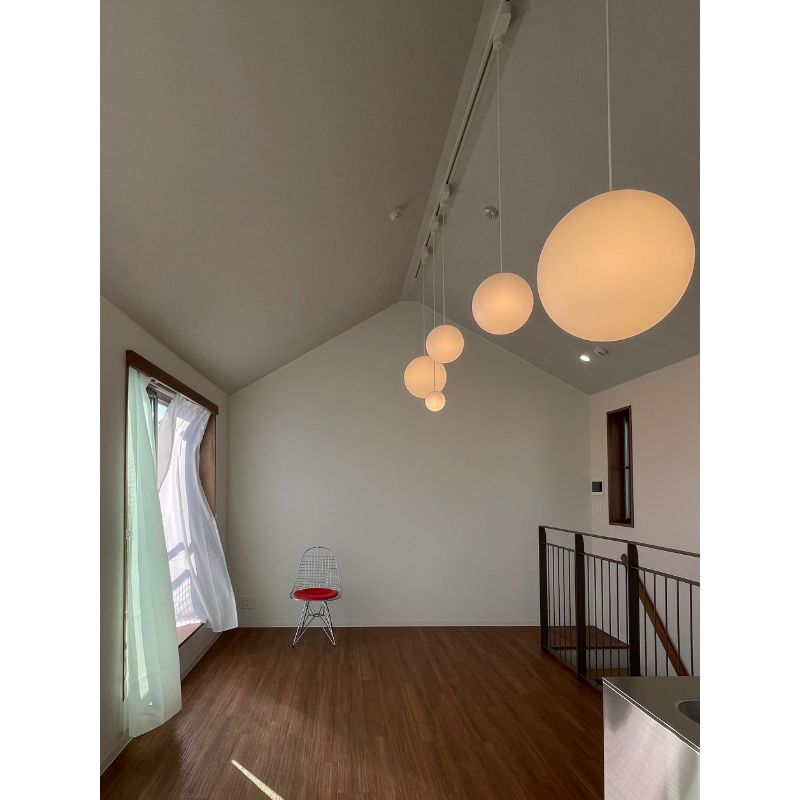

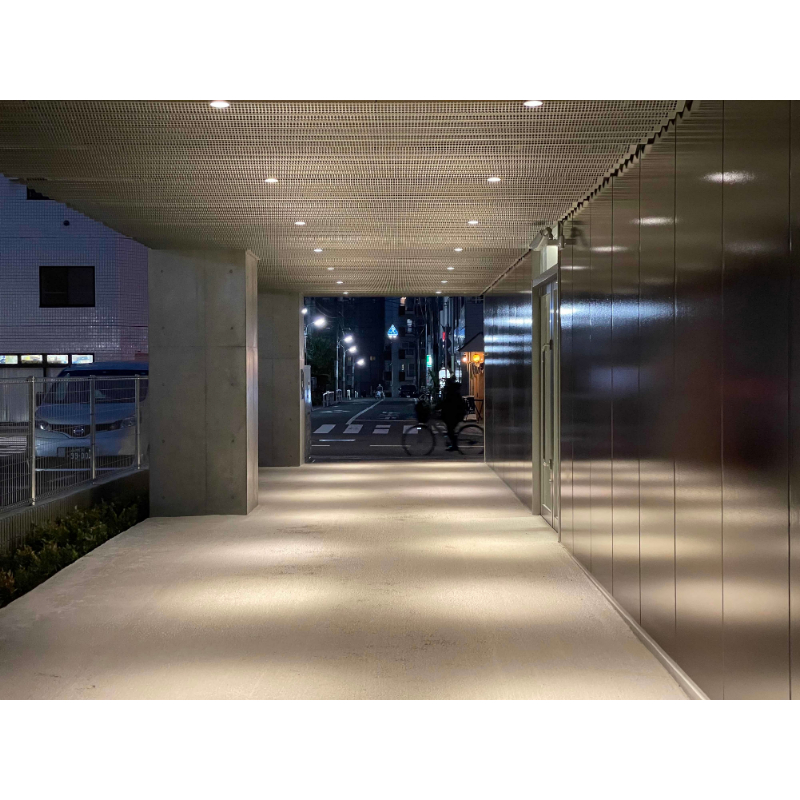

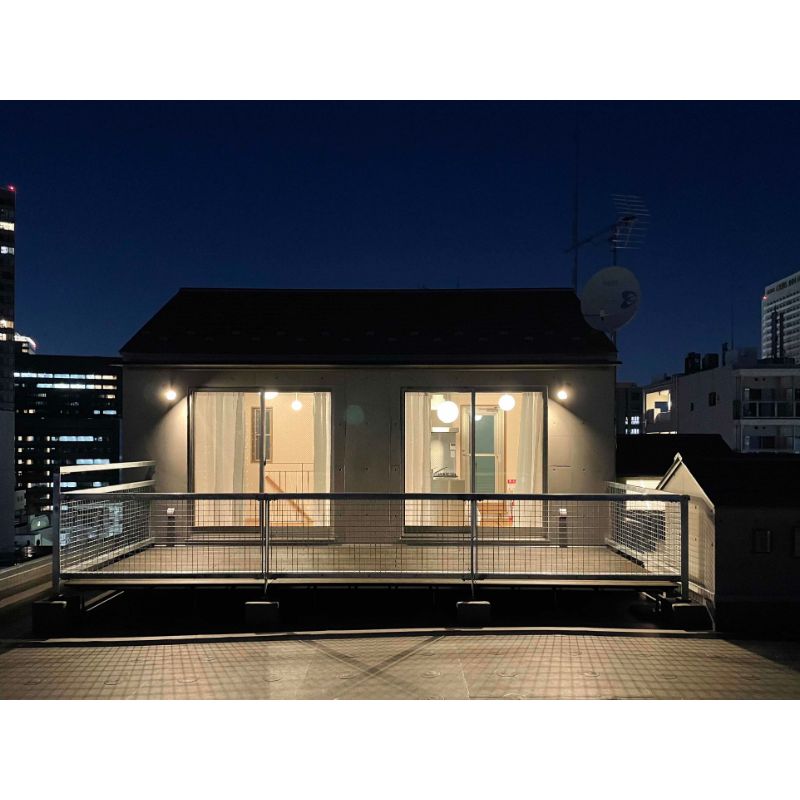

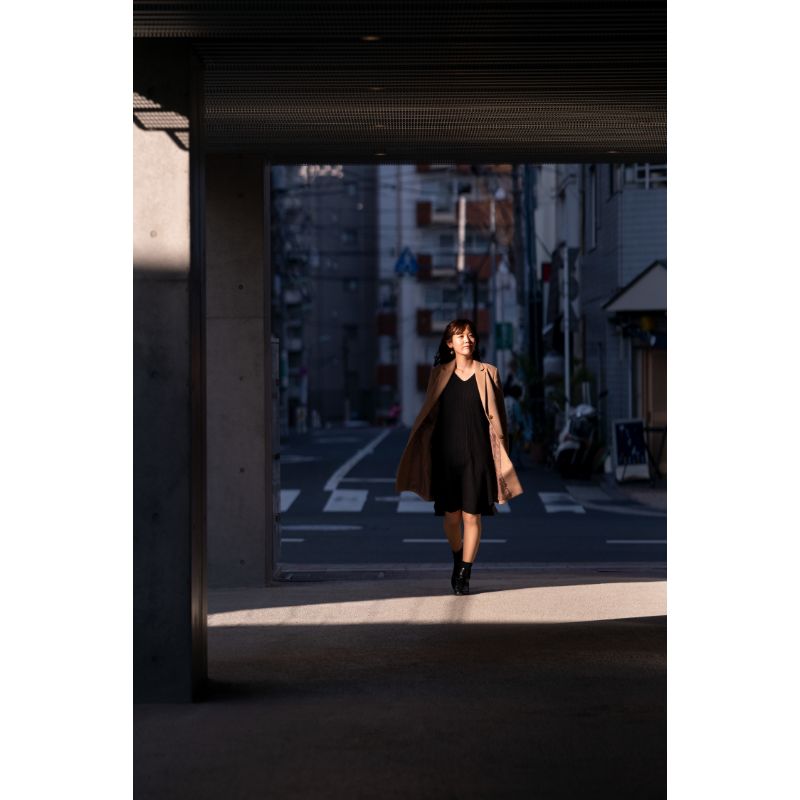

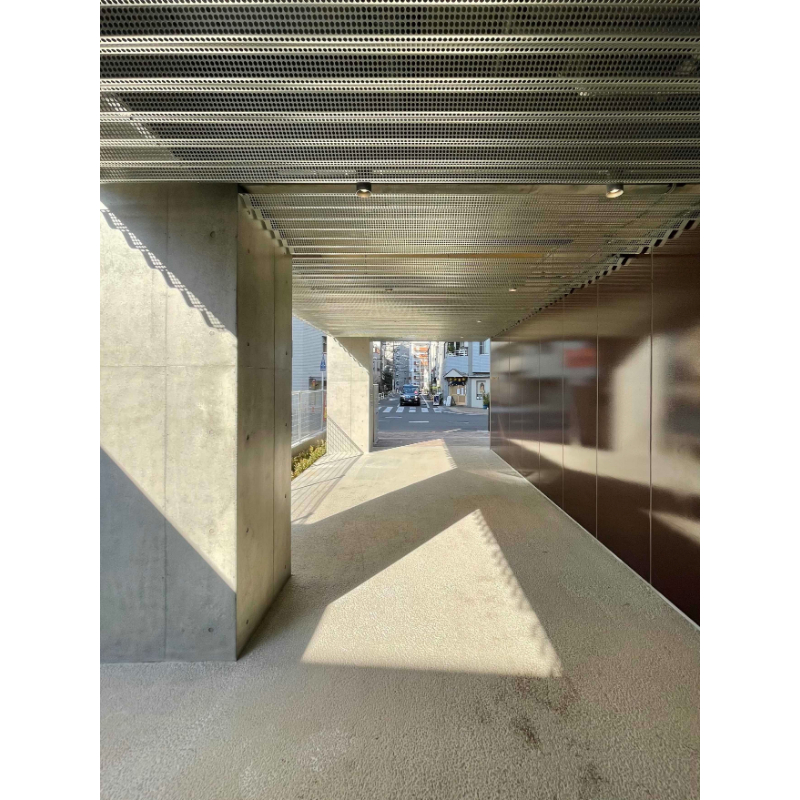

その他、1階には住戸を設けず階高を上げてピロティや店舗を配置して北向きの路面も明るく開放的にし、最上階の住戸はペントハウスやハイサイドライトによって各住戸が南面する窓を持つように設計した。また、冬の寒さには断熱と暖房を、北向き住戸の洗濯干し問題には浴室乾燥機を設けることで対応した。北向き住戸でも結果的には引渡し後すぐに満室となった。

コンクリート打放しに押出成形セメント板の外装は構造を素直に表現したもので、壁厚を薄くし貸し手の有効率と借り手の内部空間双方を少しでも大きくする効果もある。ごく一般的な材料で特徴的な外観を狙ったのは不易流行や侘び寂びの精神を現代的に解釈したものであるが、地元のご婦人から「明るくて素敵なのが出来たわね!」とお声掛けいただいたのは設計者として何より嬉しい出来事であった。

data

Maison De Nicolas Oi (2021)

Location:Oi, Shinagawa-ku, Tokyo
Main use:Apartment(40 units of housing), Shop
Site area : 373.59 sq.m
Total floor area : 1,457.31 sq.m
Building height : 29.523m (9 stories)
Completion : 2021

This is a case study of design for a rental apartment facing north. In Japan, it is believed that houses should face south, but on every site we can’t built like that way. There are advantages to facing north as well, such as stable natural light, solar heat reduction (cooler in summer), and forward-facing views (south-facing houses are backlit). By taking advantage of the site conditions, we thought about how to overcome the disadvantages of darkness, dampness, and coldness in the winter, and how to make it an attractive landscape.

We tried to design the north-facing balcony to be bright and airy.
The cantilevered slab of the balcony does not have a reinforced concrete low wall or flashing, but instead has an eaves gutter attached to the bottom of the cantilevered slab. The handrail wall is made of folded plates with perforated metal that has brightness and transparency. It doesn’t any underlying or projection, so that allows the view and wind to pass through.
The balcony handrail wall with galvanized perforated metal receives the reflected light from sunlit building on the other side of the street and looks bright.

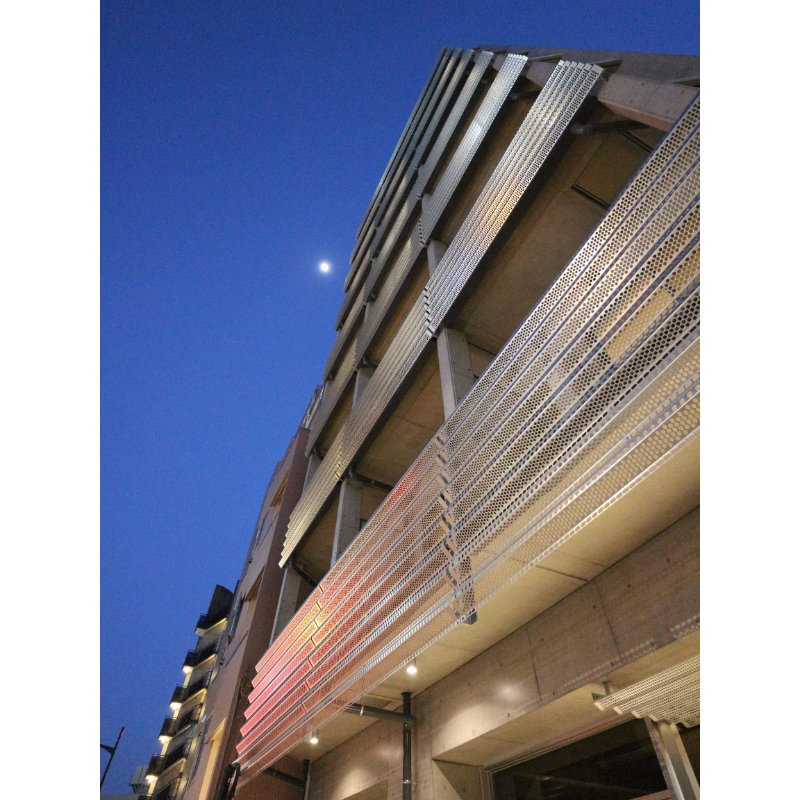

The effect of the shape of metal panel changes the expression in response to the different angles of view or the state of the sun or the night illumination.

The exterior of concrete and extruded cement panel is a rustic expression of the structure, and it has the effect of making the wall thickness thinner and increasing both the effective ratio for the owner as lender and the interior space for the resident. I aimed to create a distinctive exterior with very common materials, which is a modern interpretation of the spirit of "wabi-sabi".
